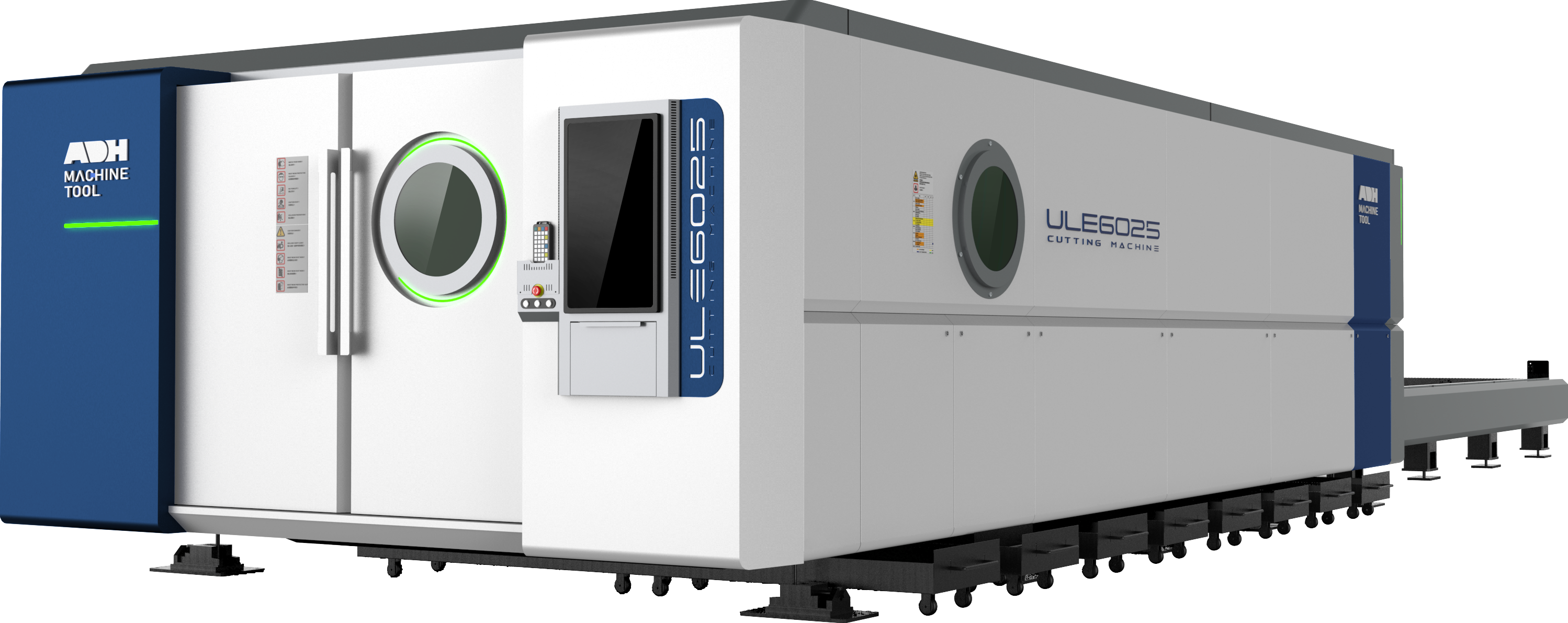

ULE Double Table Fiber Laser Cutting Machine

Description

The internal structure adopts hollow + fish scale anti burning to protect the overall structure
It is welded by Heavy Plates & Multiple rectangular pipes. Stiffeners are set inside the pipe to increase the strength and tensile property of the bed.
The whole frame is annealed at high temperature, shot blasted at high speed, and stress relief technology is applied to effectively avoid bed deformation and ensure no deformation.
ULE models are provided with exchangeable bed, moving front & back. When the operator works on a job, he can do the loading on the other bed and keep them ready for next operation. This help improve the productivity and reduce product cost per piece.

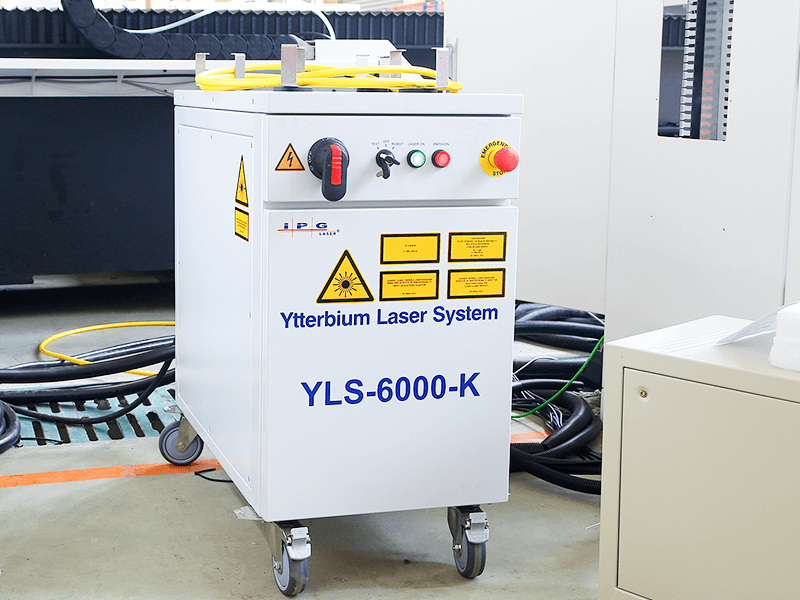

The brand of our fiber laser source including Raycus (China), n-Light (USA), IPG (Germany) with the powers varying power ranging from 1000W to 20,000W.
Constant BPP in full power range, good beam quality, small spot, more than 30% electro-optic conversion efficiency.
Modular "plug and play" design, compact and firm structure, convenient installation.

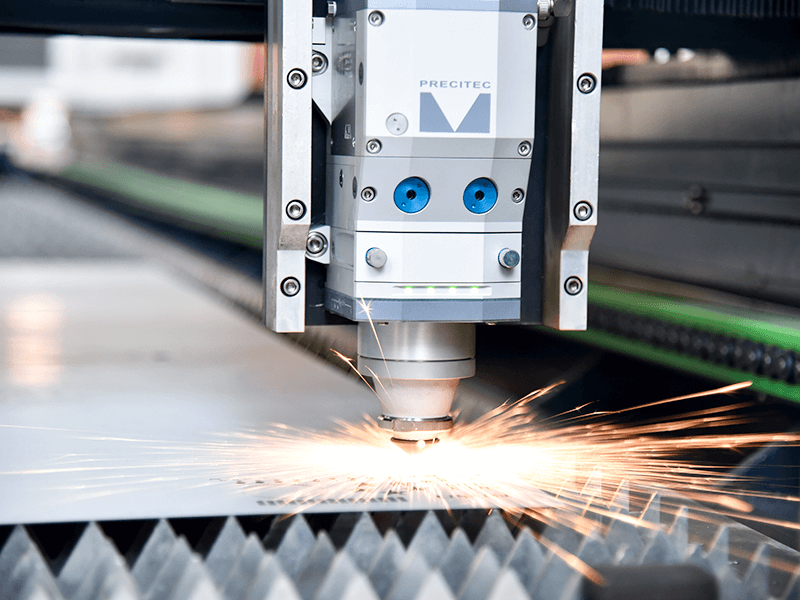

Auto focusing laser cutting head is a standard feature in ADH. This help can adjust the focus according to the material thickness.
It is suitable for multi focus section, shorten the cutting time and improve the cutting quality.
The anti-collision protection structure of the cutting head is patented, and the waste cutting micro connection prevents the plate from warping, so as to realize the high-speed operation and high stability during cutting.

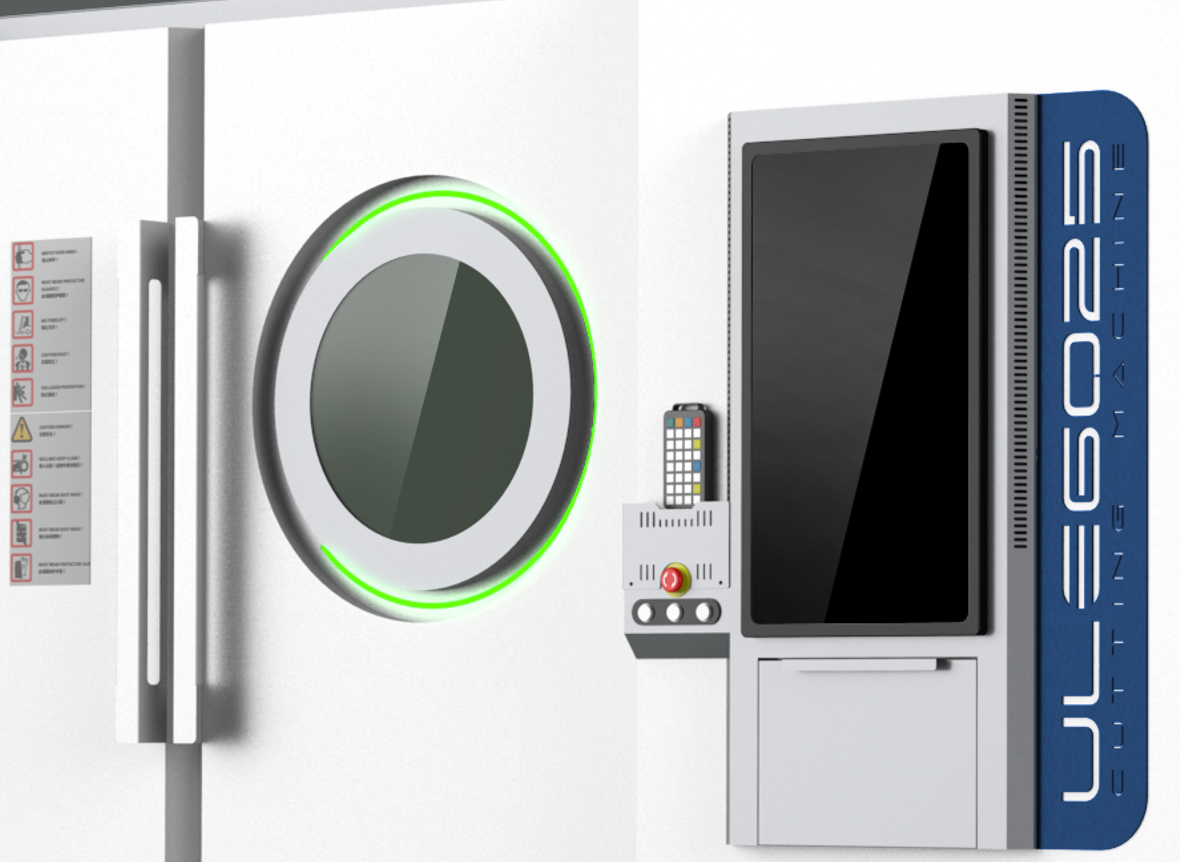

Cypcut cutting software, China's cutting software specially and exclusively designed for fiber laser cutting machine.
It has the advantages of convenient installation, simple debugging and excellent performance, and supports the speed adjustment with power.
It can set imparting linear speed separately and has a powerful cutting process database.

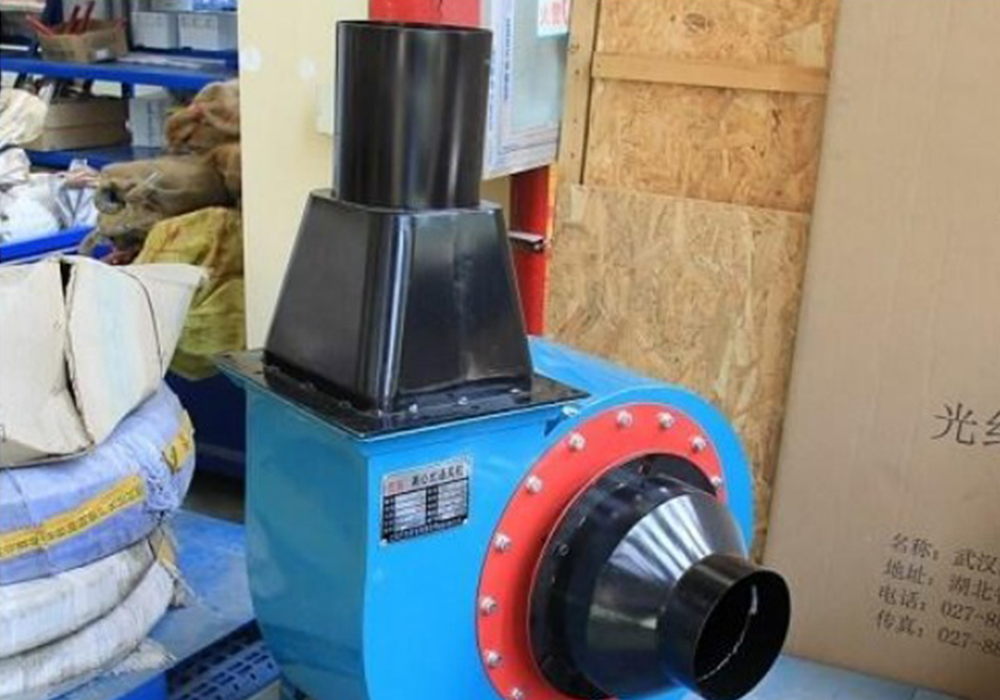

ADH has the most powerful and efficient suction Fume / Dust Extraction system. Fumes are extracted from two suction outlets to ensure efficient & clean suction. This is supported by a high power Exhaust fan of 7.5KW power, meeting the European norms Fresh Air suction fans are placed on top of the enclosure for sucking fresh air and push the exhaust fumes down. This fresh also reduces the dust density level in the exhaust fumes.
