Description

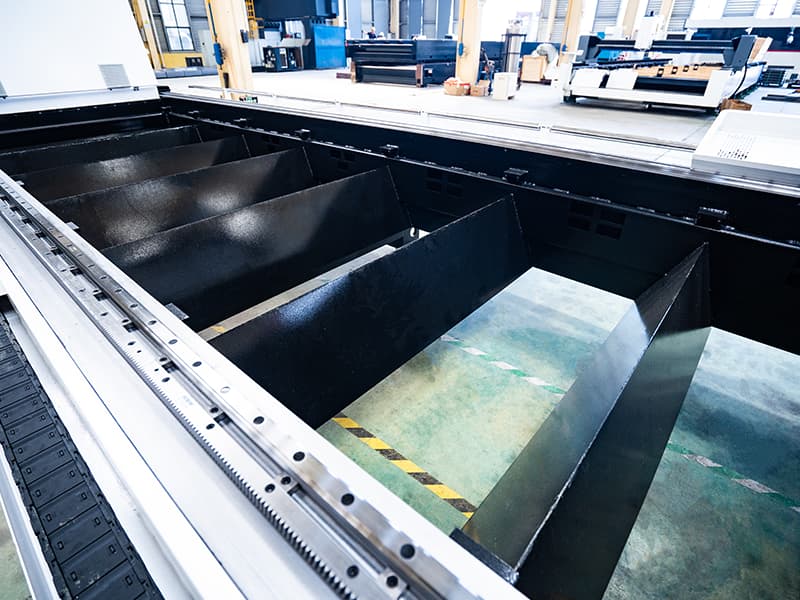

Mechanical Bed
- The internal structure adopts hollow + fish scale anti burning to protect the overall structure.
- It is welded by Heavy Plates & Multiple rectangular pipes. Stiffeners are set inside the pipe to increase the strength and tensile property of the bed.
- The whole frame is annealed at high temperature, shot blasted at high speed, and stress relief technology is applied to effectively avoid bed deformation and ensure no deformation.

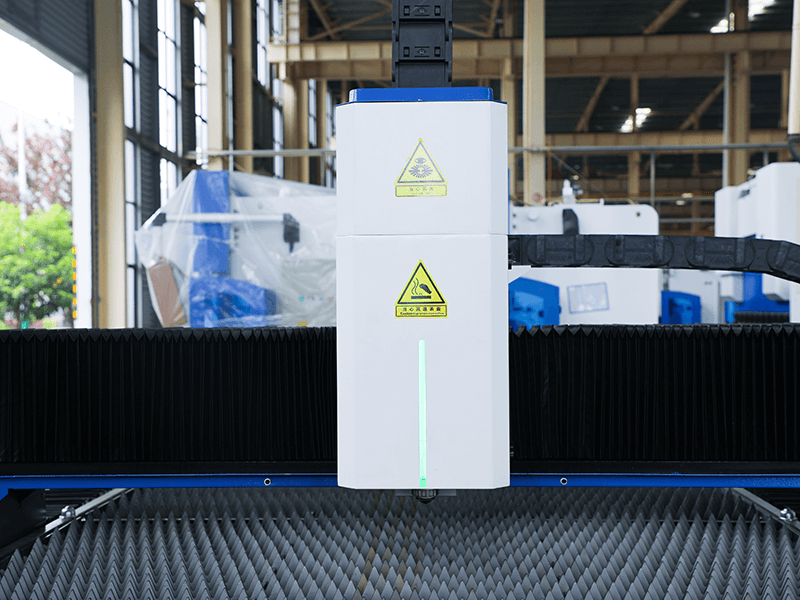

Beam
- High rigidity and lightweight design optimized by finite element analysis.
- High speed, good dynamic characteristics and fast acceleration.

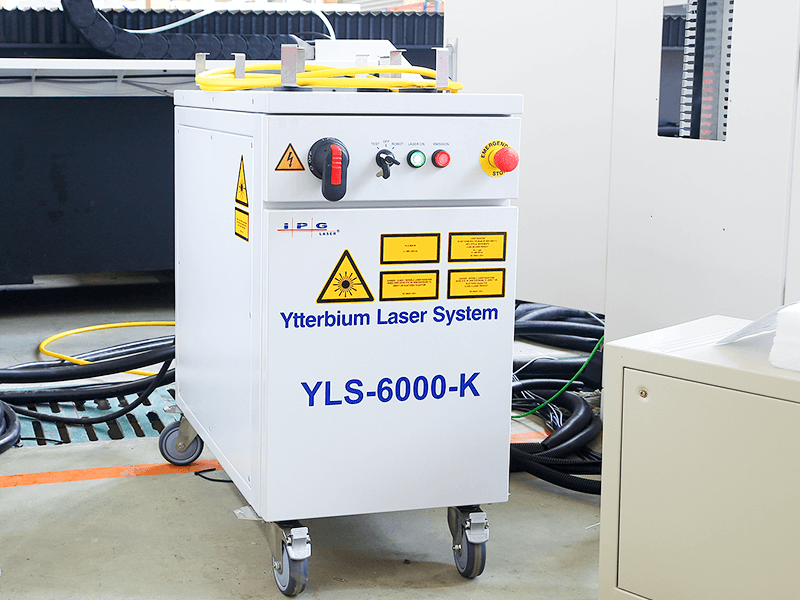

Laser Source
- The brand of our fiber laser source including Raycus (China), n-Light (USA), IPG (Germany) with the powers varying power ranging from 1000W to 20,000W.
- Constant BPP in full power range, good beam quality, small spot, more than 30% electro-optic conversion efficiency.
- Modular "plug and play" design, compact and firm structure, convenient for easy installation.
Cutting Head
- Auto focusing laser cutting head is a standard feature in ADH. This help can adjust the focus according to the material thickness.
- It is suitable for multi focus section, shorten the cutting time and improve the cutting quality.
- The anti-collision protection structure of the cutting head is patented, and the waste cutting micro connection prevents the plate from warping, so as to realize the high-speed operation and high stability during cutting.

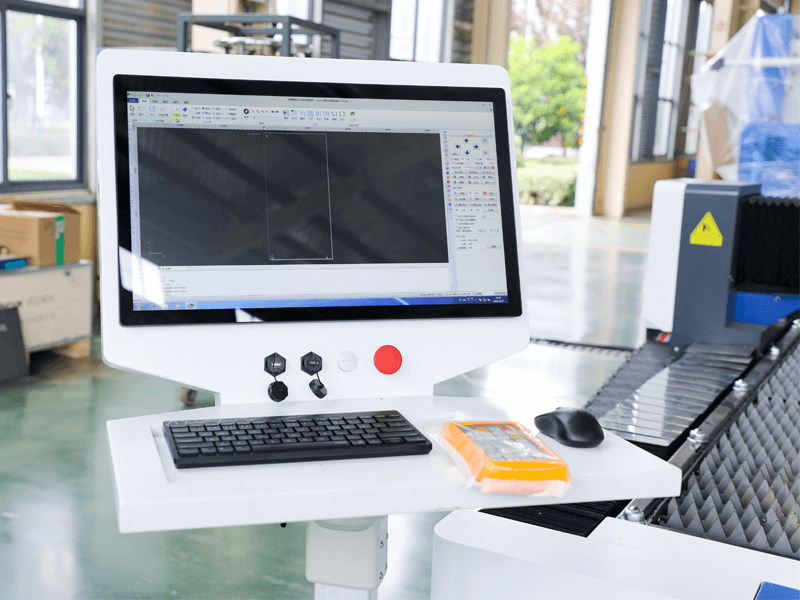

Control System
- Cypcut cutting software, China's cutting software specially designed for fiber laser cutting machine.
- It has the advantages of convenient installation, simple debugging and excellent performance, and supports the speed adjustment with power.
- It can set the import linear speed separately and has a powerful cutting process database.

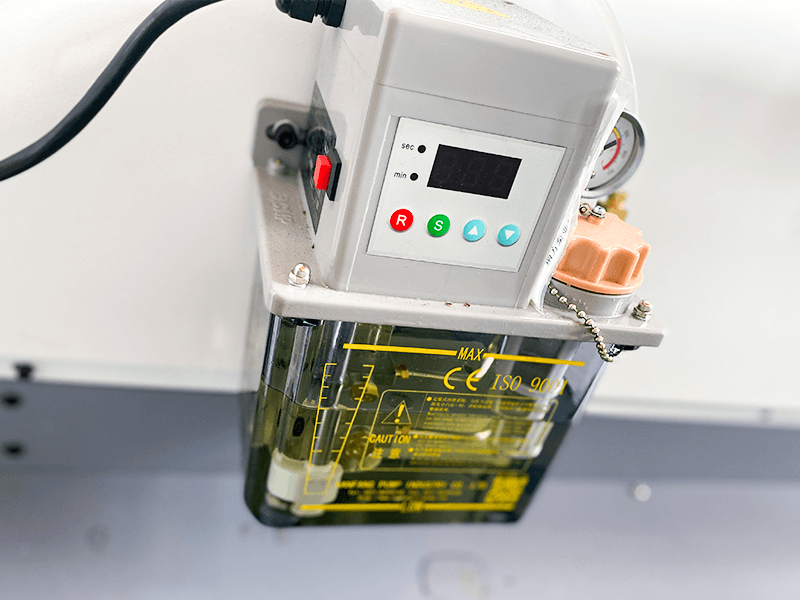

Automatic Lubrication
- The timed automatic lubrication system can automatically start and add lubricating oil according to the working time, which is convenient and fast.

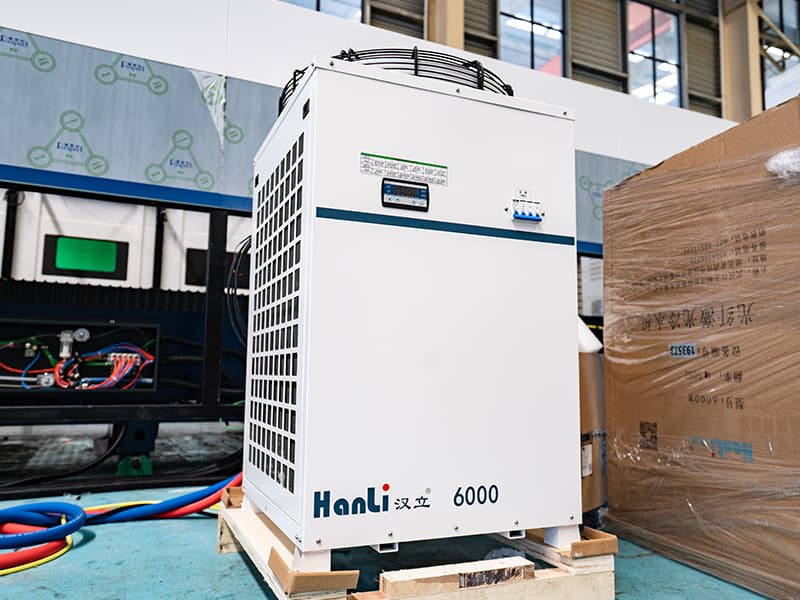

Water Chiller
- With the functions of over temperature alarm, flow protection, water level protection and other safety alarm tips.

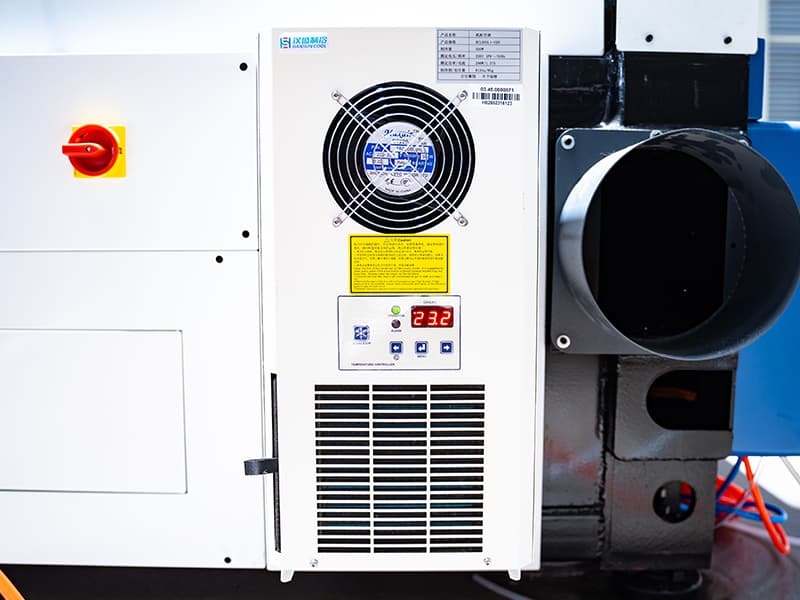

Air Cooler
- It is used to reduce the overall temperature inside the electrical cabinet and ensure the stable operation of the electrical cabinet.
Fume / Dust Extraction System
- ADH has the most powerful and efficient Double suction Fume / Dust Extraction system. Fumes are extracted from two suction outlets to ensure efficient & clean suction. This is supported by a high power Exhaust fan of 7.5KW power, meeting the European norms
