Description

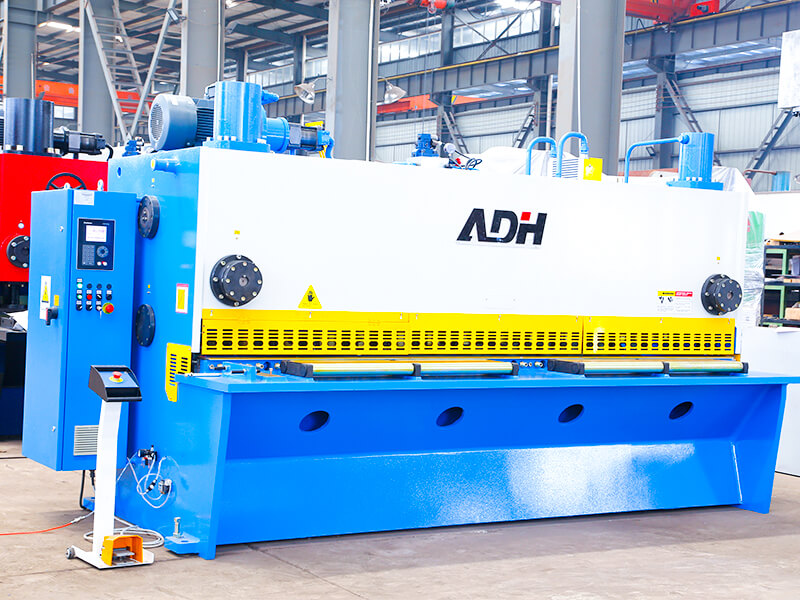

Structure
- The design of the shearing machine includes a box bed frame completely welded with the workbench.
- The frame can produce high stiffness to balance the torque load generated by shear force.
- Vertical linear movement relative to the lower blade to ensure that the shear sheet has less distortion and more accurate straightness.
- The main frames, after welding & milling, are heat treated, Annealed in an Annealing furnace to relieve the stresses caused by the above action. This gives better rigidity to the structure.

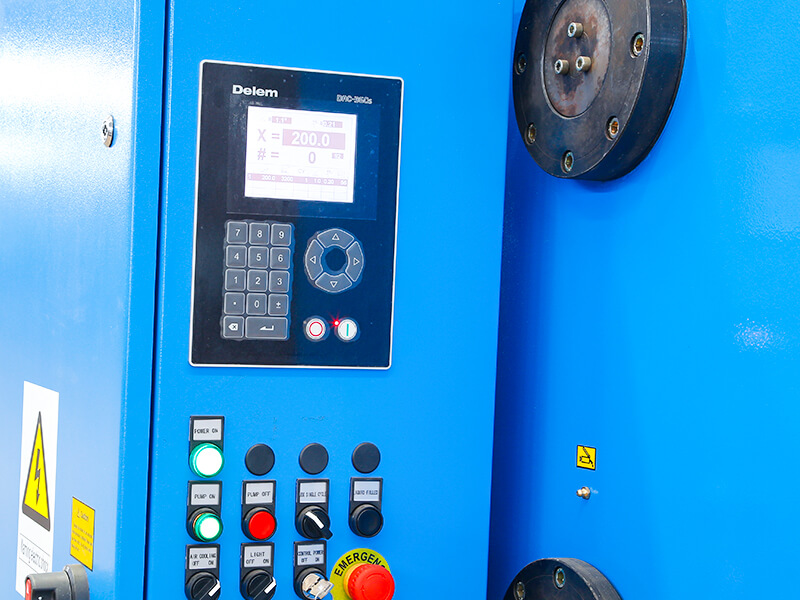

Control System
- Estun E21S digital display controller is provided for NC Shearing Machines.
- The back stop, blade angle and blade gap can be controlled and adjusted in the system.
- The controller is DAC360 CNC system of Delem brand in the Netherlands (now upgraded to DAC360T touch screen) for CNC Shearing Machine

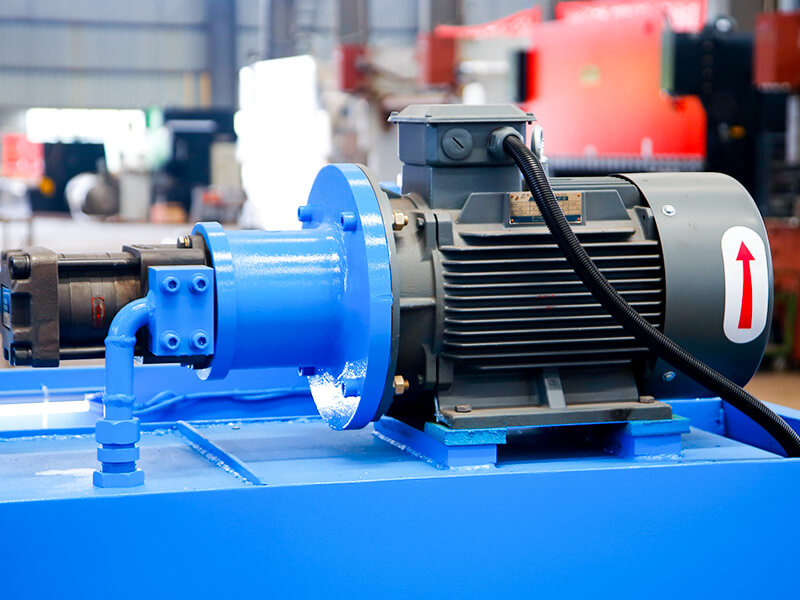

Main Drive
- High performance main motor can be equipped with international brand such as Siemens or Chinese famous brand WN.
- Country specific Voltage customization can be done

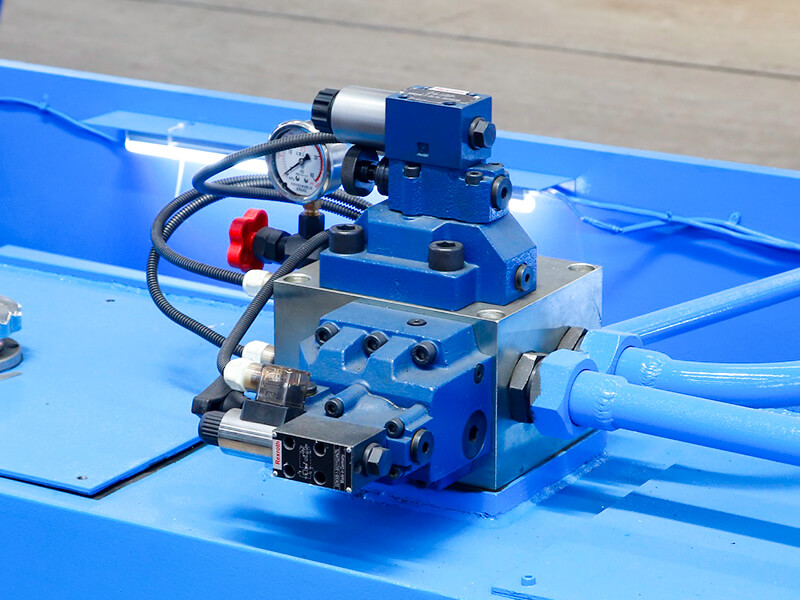

Hydraulic Valve
- International brand Rexroth hydraulic valve block is adopted.
- With oil pressure overload protection, oil leakage and valve jamming are rare.
- Real time oil pressure monitoring to ensure smooth oil circuit and stable running of the equipment.

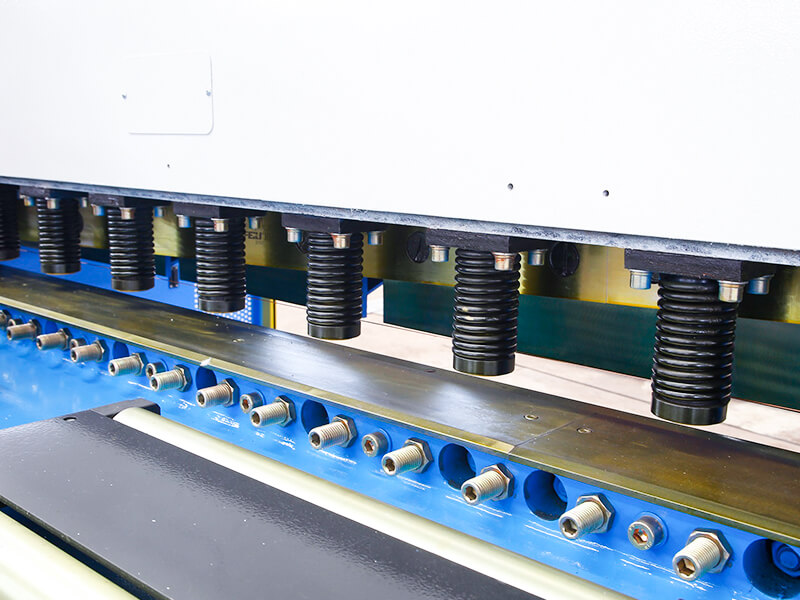

Feeding Port
- The design of feed port complies with international safety standards.
- The minimum feeding height is the sheet thickness, and the maximum is the sheet thickness plus 20-25mm. There are adjustable height screws to adjust the feeding height.
- The front fence and side guardrail ensure safe operation.

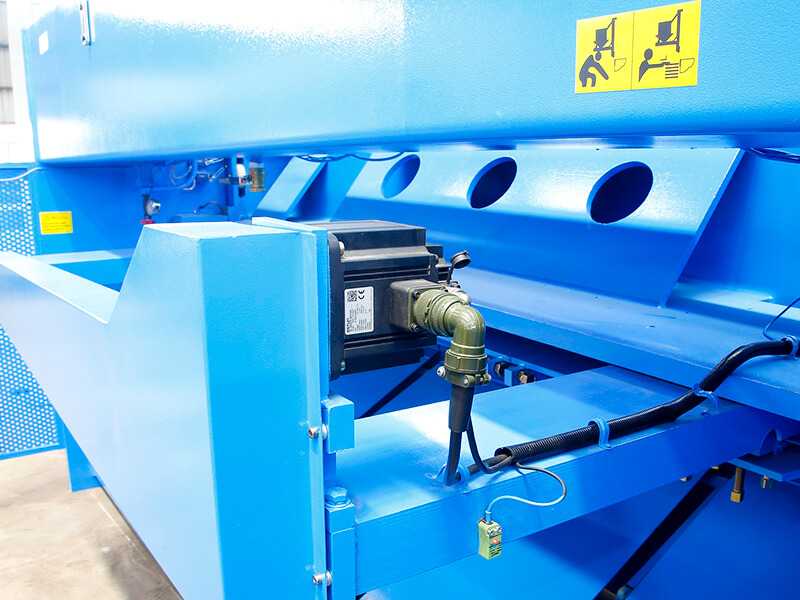

Servo driven Back gauge
- Pneumatic rear support device and rear light curtain protection device are optional.
- The automatic rear support plays a supporting role in cutting the thin plate to ensure the cutting accuracy and surface finish of the plate.
- The rear light curtain protection protects personal safety during the operation of the machine and complies with international safety standards.
- The rear servo reduction motor has good quality and fast positioning speed of simulation operation.
- It is equipped with light alignment device, which is convenient for marking and shearing, and can stepless adjust the stroke of the blade holder.
- Pneumatic rear support device and rear light curtain protection device are optional.
- The automatic rear support plays a supporting role in cutting the thin plate to ensure the cutting accuracy and surface finish of the plate.
- The rear light curtain protection protects personal safety during the operation of the machine and complies with international safety standards.

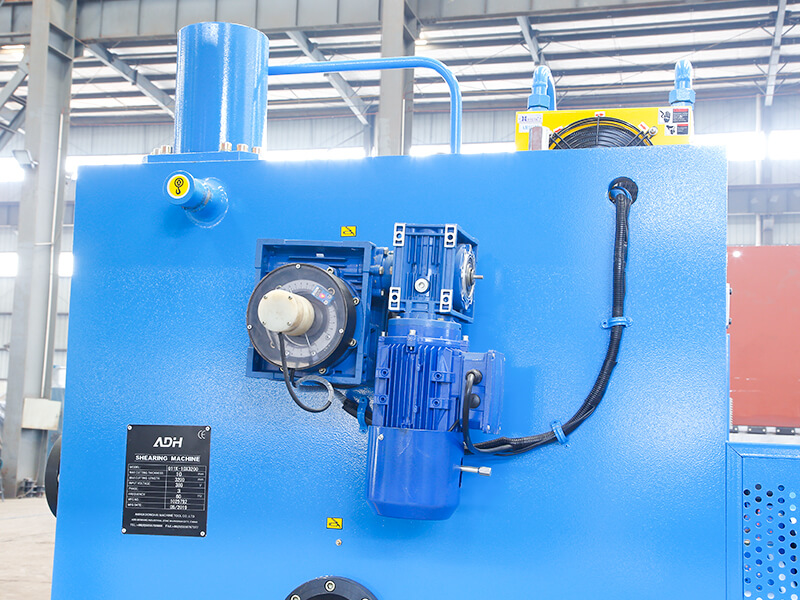

Motorized Cutting Angle Adjustment
- The motorized shearing angle adjusting device saves the trouble of manual adjustment and can automatically adjust the shearing angle according to the plate thickness.

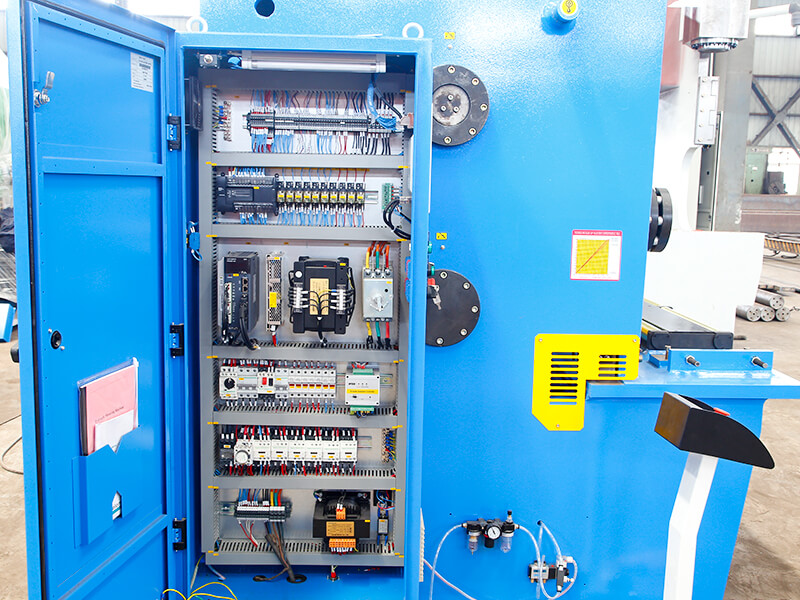

Electrical Components
- High-quality electrical components are adopted, which are stable and durable with long service life.
- The rear servo reduction motor has good quality and fast positioning speed of simulation operation.
Hydraulic Oil Cooling Device
- In high temperature environment, the machine can be used continuously for a longer time.

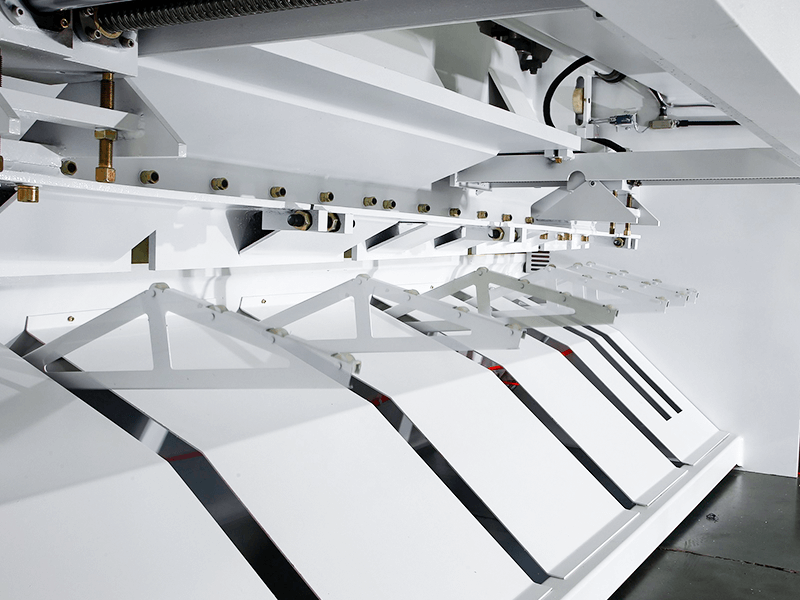

Pneumatic Rear Support
- It is convenient for customers to cut wide sheets, which can be closed with one key when not in use.

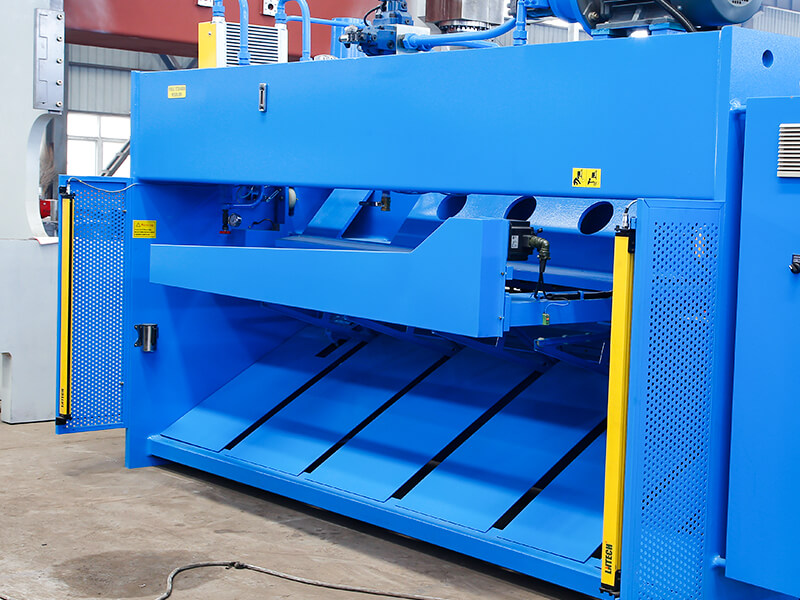

Rear Protection Device
- Photoelectric protection to protect personal safety, especially finger safety.

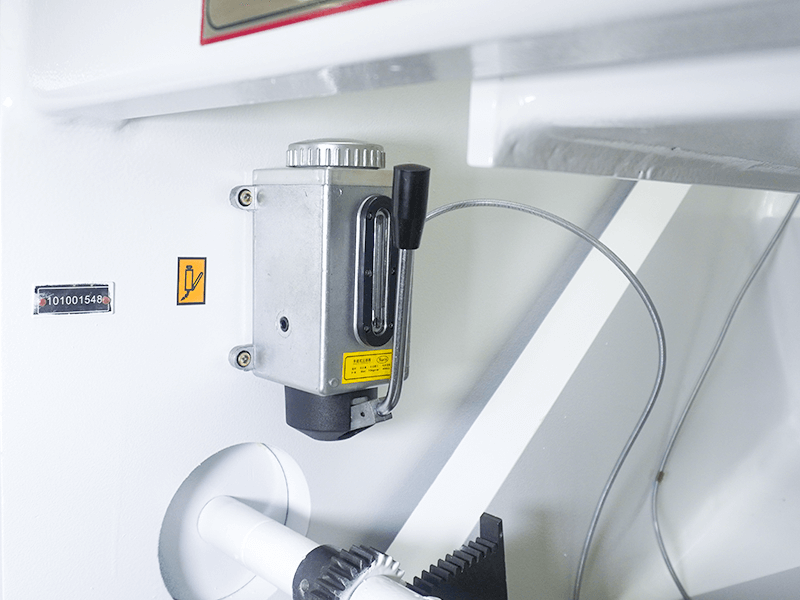

Lubrication Device
- It is more convenient and faster. There are two models: automatic and manual, which are convenient for customers to choose.

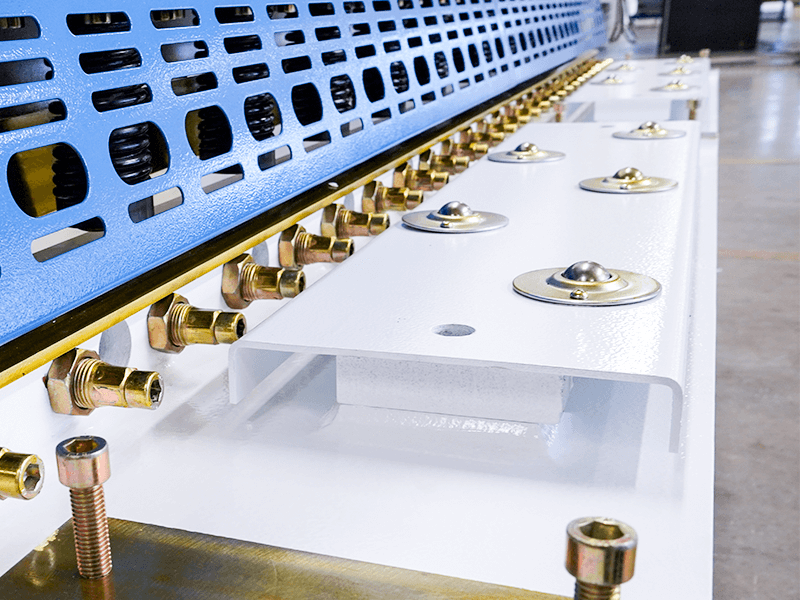

Ball Integrated Front Tables
- The ball type front support reduces the friction between the plate and the table, and ensures the smoothness of the plate surface.
- The feeding is more convenient and fast, and the cutting efficiency is improved.
