Understanding Press Brakes: A Fundamental Tool in Sheet Metal Fabrication

A Press brake is an indispensable machine in the sheet metal forming industry, used for bending sheet metal into desired shapes. By applying force on sheet metal in between a punch and die, it creates precise bends and angles, which are essential for manufacturing everything from industrial components to decorative items, such as
1. Electrical and Control Panel Industry

2. Shipping Container Industry

3. Medical Equipment Manufacturing

4. Aerospace Industry

5. Heavy Structural Fabrication

Key Components and Mechanisms:

  1. Main Structure: Modern press brakes often utilize CNC systems for precision and automation, streamlining operations and enhancing accuracy.
  2. Punch and Die Setup: These tools define the shape and angle of the bend. Variations include V-dies, radius dies, and gooseneck punches, tailored for specific designs.
  3. Back Gauge: This feature ensures precise positioning of the metal sheet, controlling bend length and placement.
  4. Safety and Alignment Systems: Advanced safety measures like laser alignment and light curtains protect operators and improve efficiency.

Types of Press Brake Bending:

  • Air Bending: A versatile and energy-efficient method, offering flexibility in bend angles but requiring compensation for springback.
  • Bottom Bending: This technique involves pressing the sheet metal fully into the die, resulting in higher accuracy and reduced springback.
  • Coining: A high-pressure method ensuring maximum precision and minimal springback, though it involves higher costs.

Materials and Applications:

Press brakes work well with ductile materials like aluminum, steel, and brass, making them suitable for industries ranging from construction to aerospace. Their adaptability makes them ideal for both small-scale and mass production.

Advantages of Modern Press Brakes:

  • High precision and automation.
  • Efficient production with minimal setup time.
  • Versatility in creating intricate designs and large workpieces.

With technological advancements, press brakes have become faster, safer, and more adaptable, playing a critical role in modern manufacturing processes.

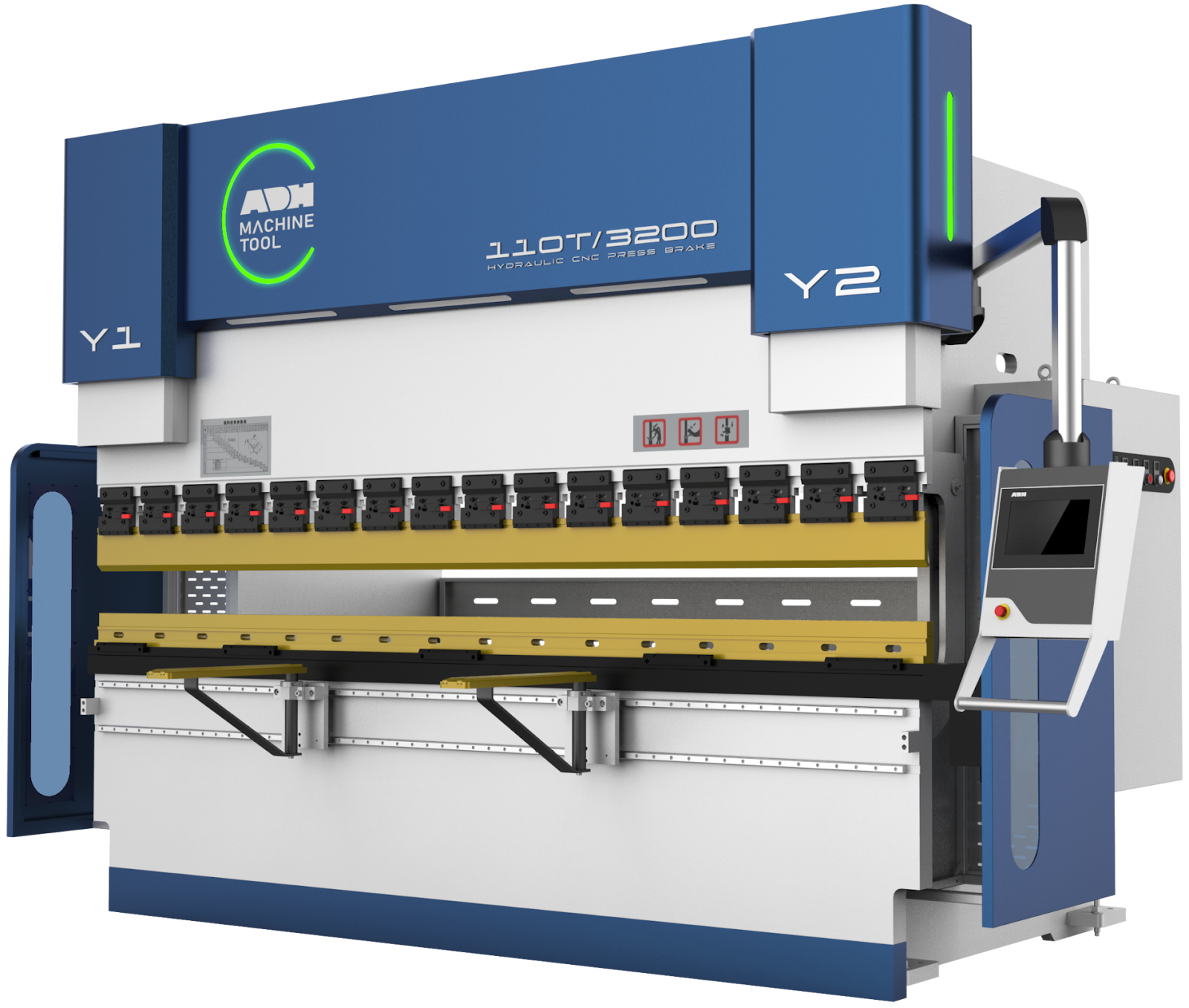

What is a CNC Press Brake?

A CNC press brake (Computer Numerical Control press brake) is a machine tool that combines computer numerical control technology with hydraulic or electric bending systems to precisely shape metal sheets into desired profiles. These machines are highly efficient, offering exceptional accuracy and automation in metal bending operations.

Types of CNC Press Brakes:

  1. Hydraulic CNC Press Brakes
    • Powered by a hydraulic system, with Y1 and Y2 axes controlling synchronized and individual ram movements.
    • Well-suited for large-scale and heavy-duty bending tasks due to their reliability and durability.
    • Widely adopted in the metalworking industry due to their mature technology and ability to handle high tonnage workpieces.
  2. Electric CNC Press Brakes
    • Operated by electric motors instead of hydraulic systems, eliminating oil leakage concerns.
    • Energy-efficient as motors operate only during active bending processes.
    • Ideal for precision tasks involving smaller tonnages, offering faster bending speeds.

Bending Mechanisms:

  • Down-Moving Press Brakes
    • The upper punch moves downward onto a stationary die, shaping the metal sheet.
  • Up-Moving Press Brakes
    • The punch remains stationary, while the lower die moves upward to perform the bend.

Advantages of CNC Press Brakes:

  • Precision and Automation
    CNC systems calculate the ram and back gauge positions with incredible accuracy, ensuring consistent bends.
  • Programmability
    The bending sequence, angles, and lengths can be pre-programmed for repeatable and efficient production.
  • Error Detection
    Real-time monitoring helps identify and correct errors during the bending process.
  • Customization
    CNC press brakes can handle a variety of profiles, making them versatile for customized designs.

Key Applications:

CNC press brakes are used across industries, including automotive, aerospace, and construction, for manufacturing metal components of varying complexity and size. Their adaptability makes them an indispensable tool in modern fabrication processes.

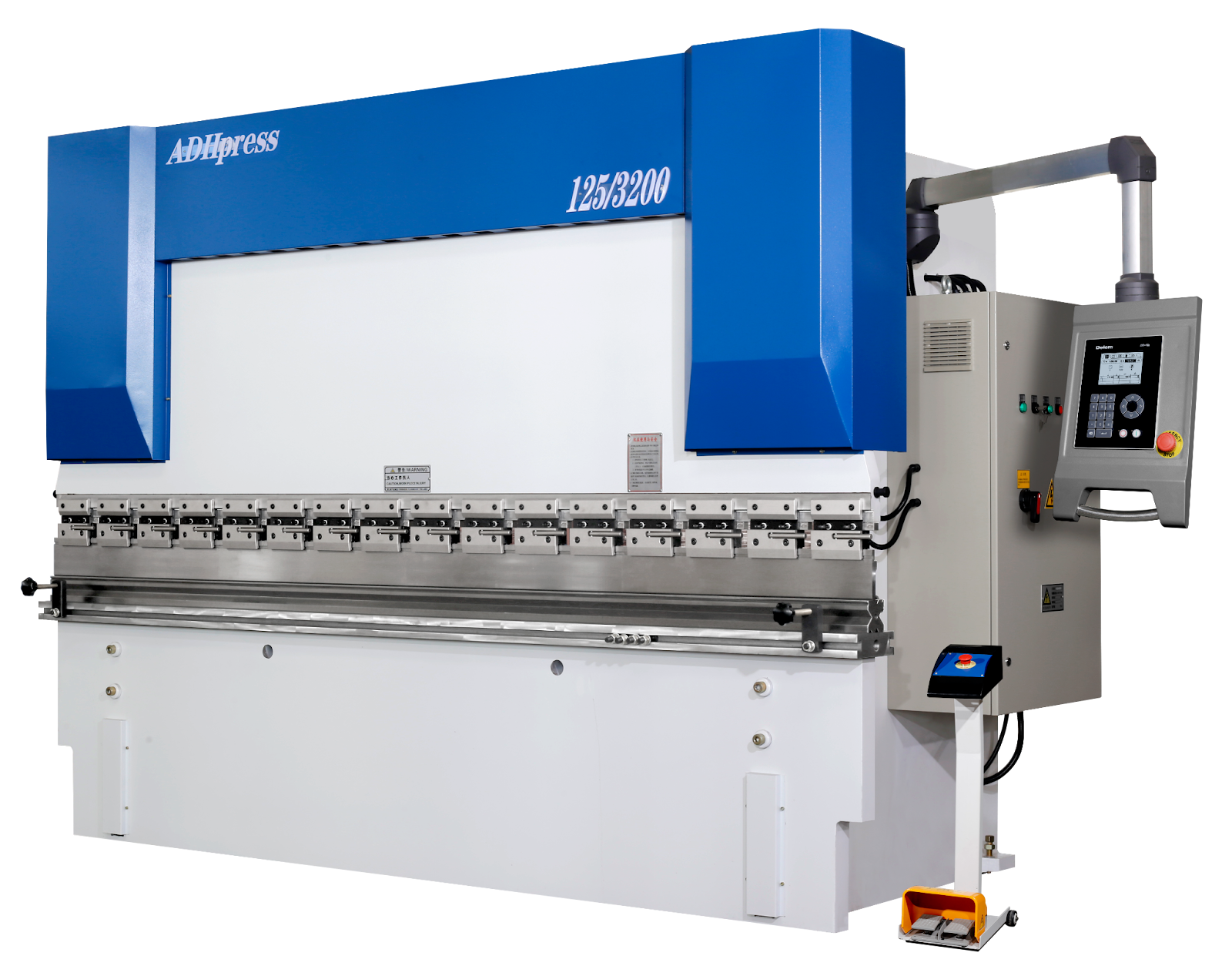

What is an NC Press Brake?

An NC press brake (Numerical Control press brake) is an early and relatively simple type of metal bending machine. These machines use a torsion bar system to mechanically synchronize the Y-axes on either side of the ram (Y1 and Y2), enabling synchronized up-and-down movement for bending sheet metal.

Features and Functionality:

  • Mechanism:
    The torsion bar connects the hydraulic cylinders on both sides of the ram. This ensures simultaneous movement of the ram for consistent bending operations.
  • Ease of Use:
    NC press brakes are straightforward and cost-effective, making them ideal for small-scale or less complex bending tasks.
  • Limitations:
    • Precision: Unlike CNC press brakes, NC models lack real-time feedback systems and automatic error correction, leading to lower bending accuracy.
    • Durability: Over time, the torsion shaft can deform under repeated loads, potentially reducing performance and precision.
    • Volume Production: These machines are not suitable for high-precision or high-volume manufacturing due to their mechanical synchronization and limited adaptability.

Applications:

CNC press brakes are commonly used in scenarios requiring basic bending operations where cost efficiency and simplicity take precedence over precision and automation.
