Description

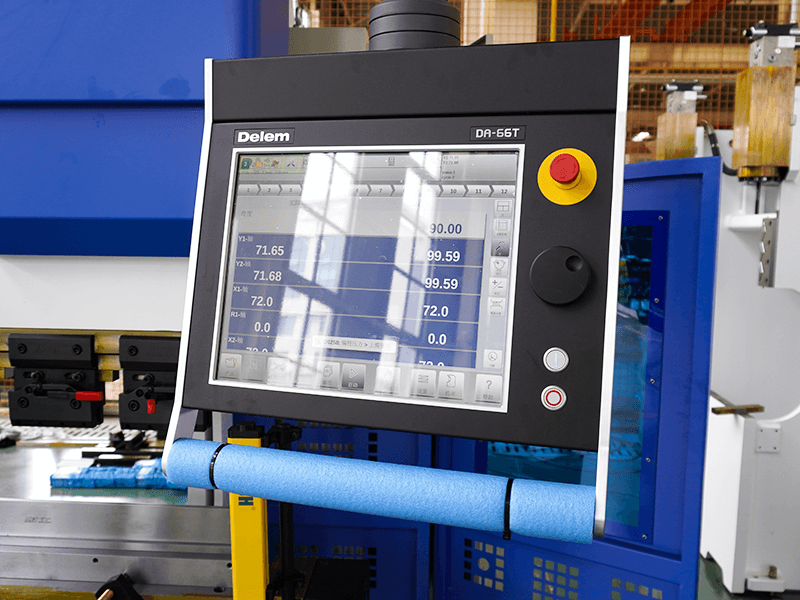

CNC Controller
- ADH offers CNC Controllers like Delem from Nether lands, ESA from Italy & Cybelec, Switzerland. All are good quality and branded controllers with high repute.
- The efficient algorithm optimizes the running cycle of bending, reduces the time required to set the work step, and makes bending more efficient, especially for batch processing.
- In addition, the system can meet 2D and 3D graphics editing depending upon Controllers models fitted on the machine.

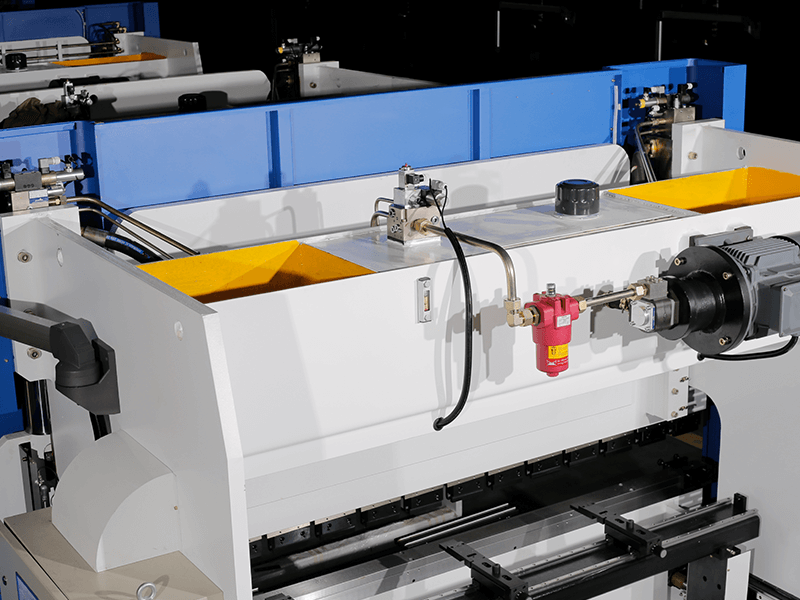

Hydraulic System
- This is an electro-hydraulic servo synchronous hydraulic control system with short hydraulic cylinder spacing. It has strong anti eccentric load capability, high synchronization accuracy, low cost and high power density ratio.
- The pressure of the hydraulic system can be adjusted according to the practical use to meet the requirements of bending force.
- ADH adopts the well-known German brand HAWEI hydraulic system, which has the characteristics of low failure rate and high efficiency.

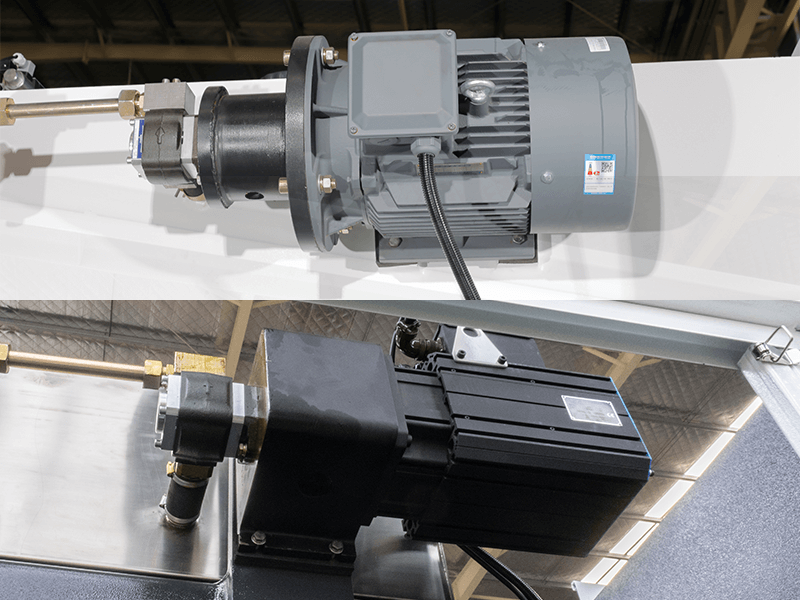

Main Drive
- As we all know, Servo motor has become the mainstream, with low energy consumption, high dynamics and improving machine production efficiency as the main goal. Compared with traditional motors, the energy consumption can be saved up to 35%, so it can bring customers the advantages of high efficiency and low operation cost.
- At the same time, we also have an efficient and energy-saving Induction motor from Siemens, Germany, which can meet the production needs of customers, and its work efficiency is much higher than that of ordinary motors.
Hydraulic Oil Pump
- The oil pump is made of high-strength Cast Iron, with unique internal noise reduction design, low sensitivity to oil pollution and long service life.

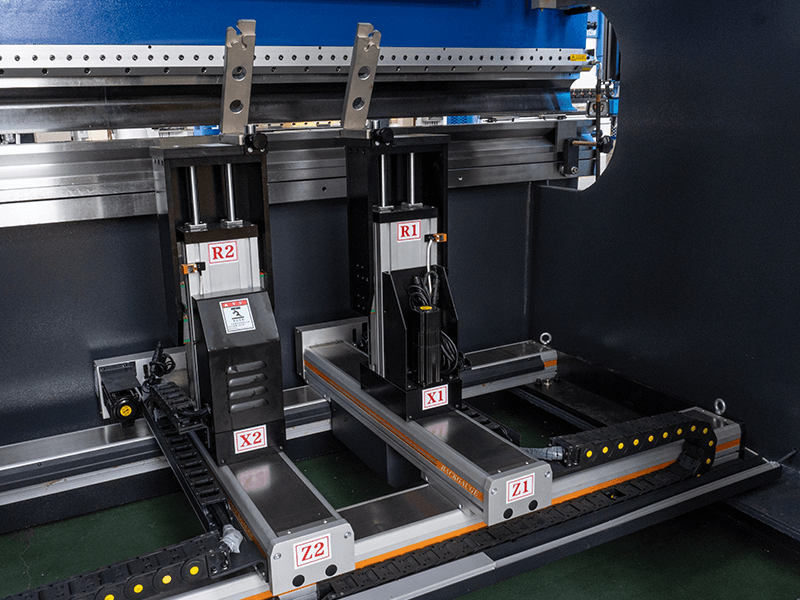

Back gauge
- ADH uses imported ball screw and linear guide rail to ensure that the movement accuracy of X-axis and ensure good repeatability of back gauge
- The rear stop adopts synchronous pulley mechanism controlled by Servo motor.
- The whole back gauge system is tempered at high temperature which is help eliminate the internal stress, improve the plasticity and toughness of the metal. The users no longer suffer from any loss of accuracy caused by frame deformation.

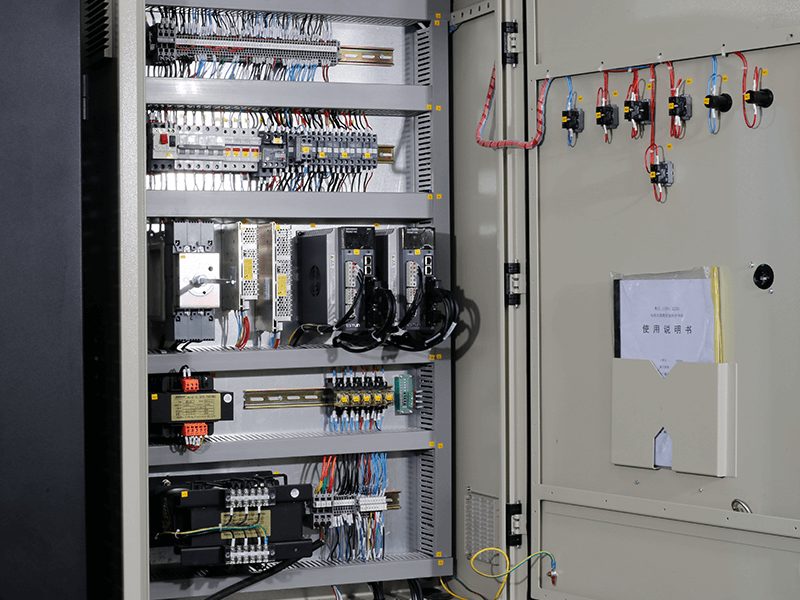

Electrical Components
- It adopts genuine Schneider, imported from France, which is stable and durable with long service life.
- Equipped with Estun original adaptive electrical box assembly, with strong anti-interference ability and stable electrical operation.

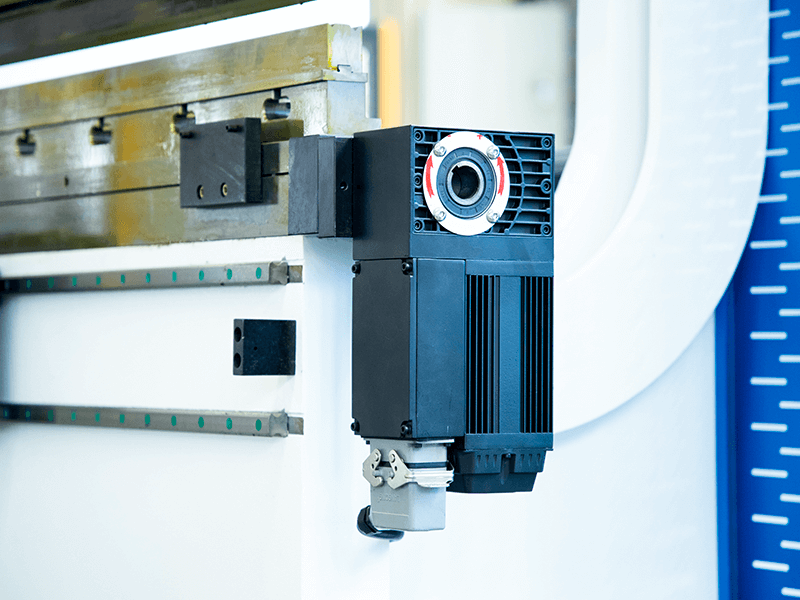

Table Crowning
- Independent design, calculate the compensation value according to the total deformation of the ram and worktable, so as to make the deformation curve of the bed fit perfectly with the compensation curve, and ensure consistency of straightness and angle of the component.

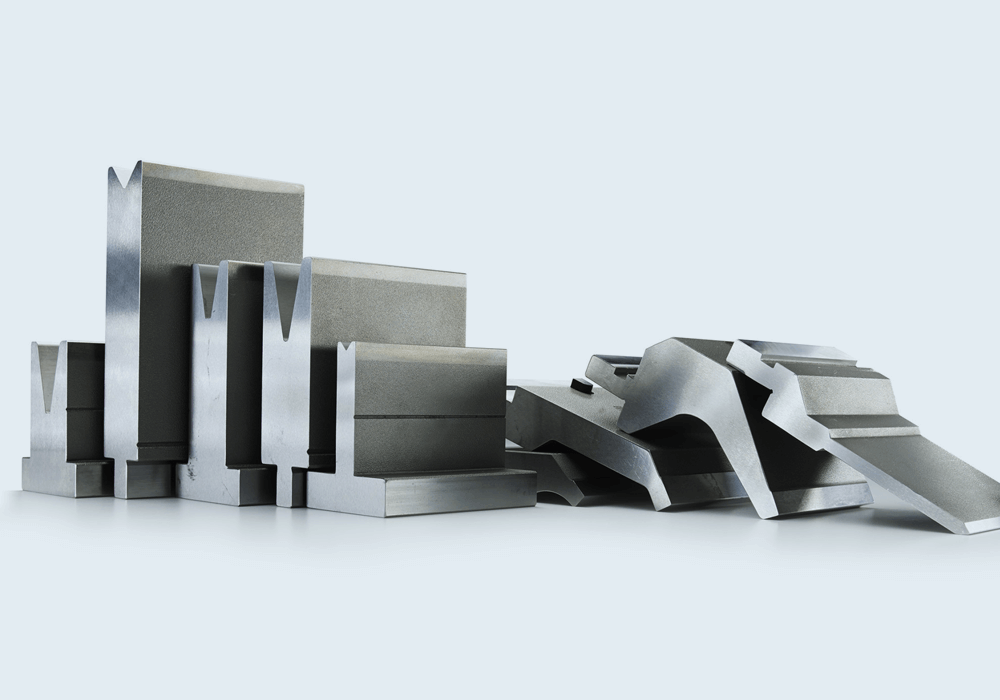

Punches & Dies
- Press brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be successful only due to right selection of punch and die. We can provide appropriate toolings according to different bending requirements of customers.

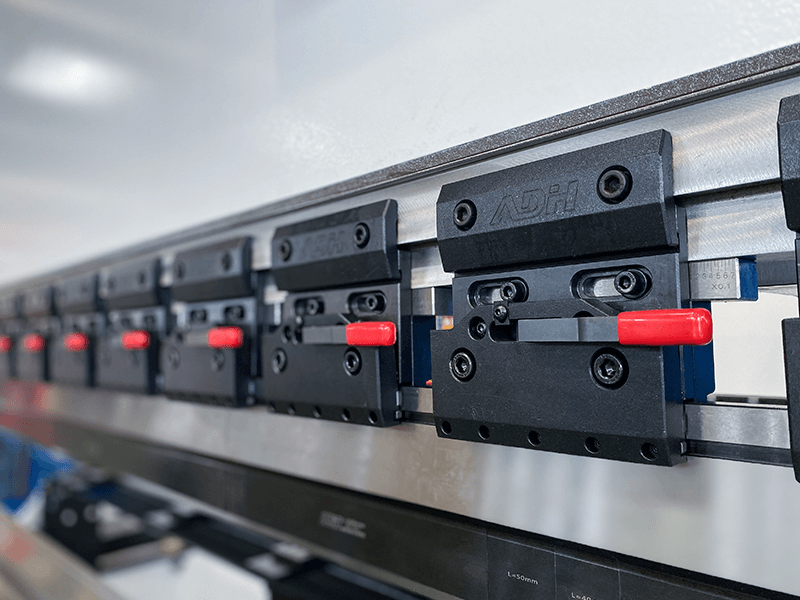

Fast Clamp
- This help the operator to change the top punch quickly and save time.

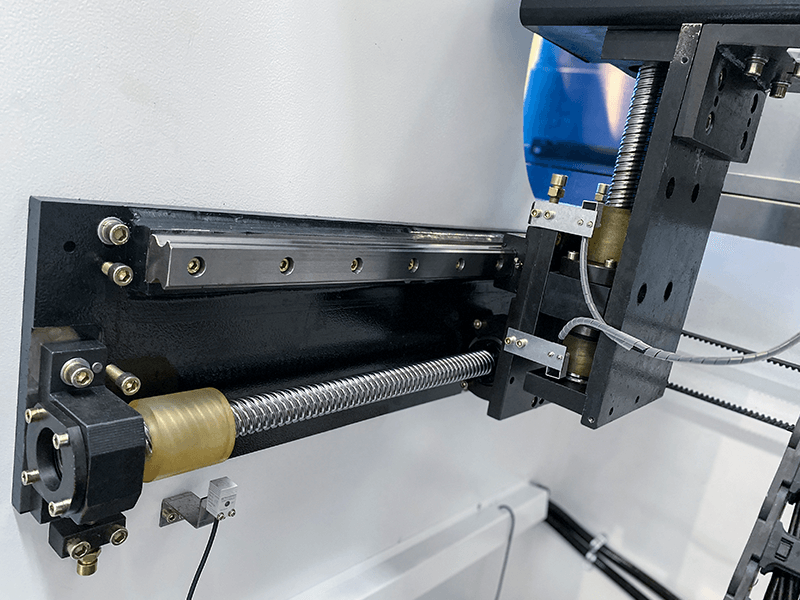

Ball Screw & Guide
- Branded Ball screw and linear guide rail are adopted to ensure the smooth operation of the machine.

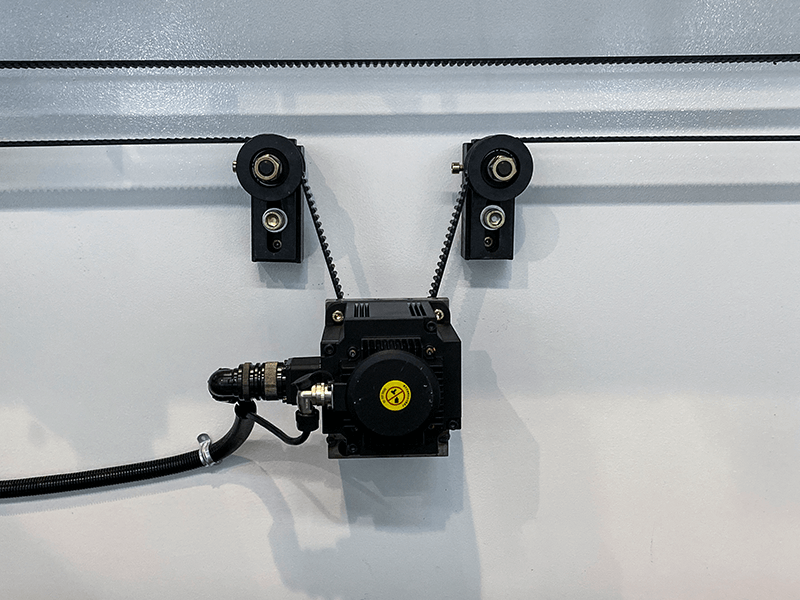

Servo Motor
- The servo motor controls the Y-axis moving with higher accuracy and perfection.
